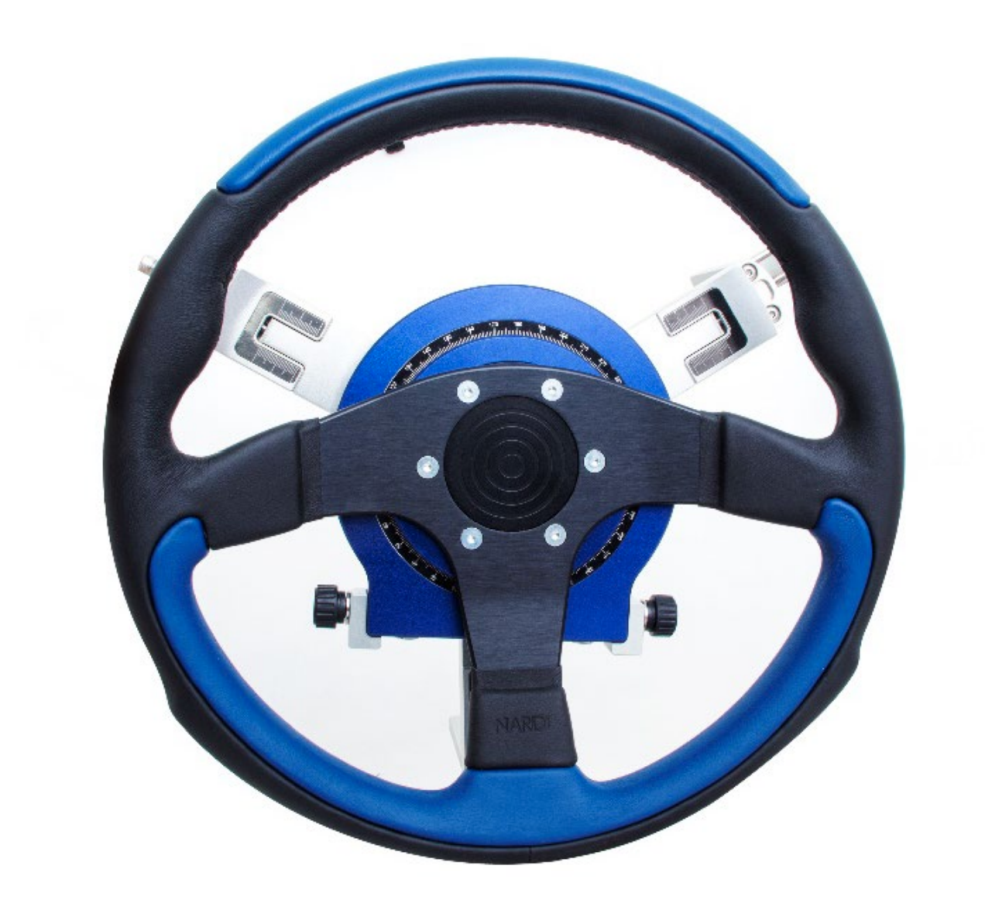

The RACELOGIC Steering Torque Sensor is designed to accurately measure a vehicle’s steering angle or torque in tests such as ECE R79, ISO 4138 and ISO 7401. It has a CAN interface, which means you can connect the sensor directly to the VBOX 3i Data logger.
The sensor is light and compact, with high dynamic response and a fine resolution of steer angle (0.1°). Easy access push buttons make it quick and simple to zero the steer angle and torque, once mounting is complete.

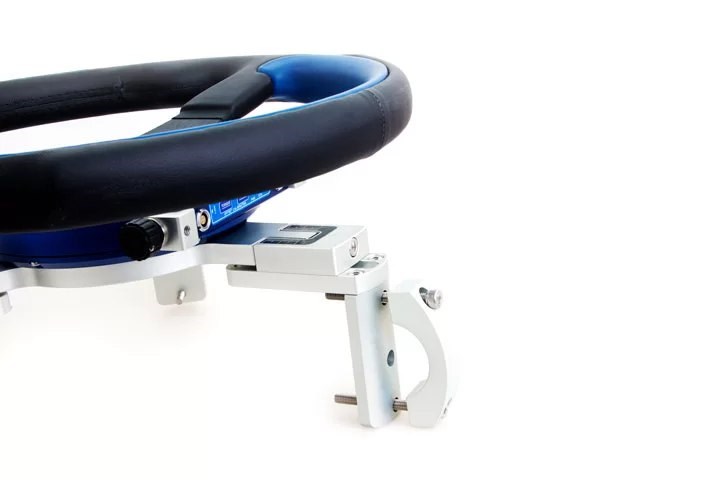

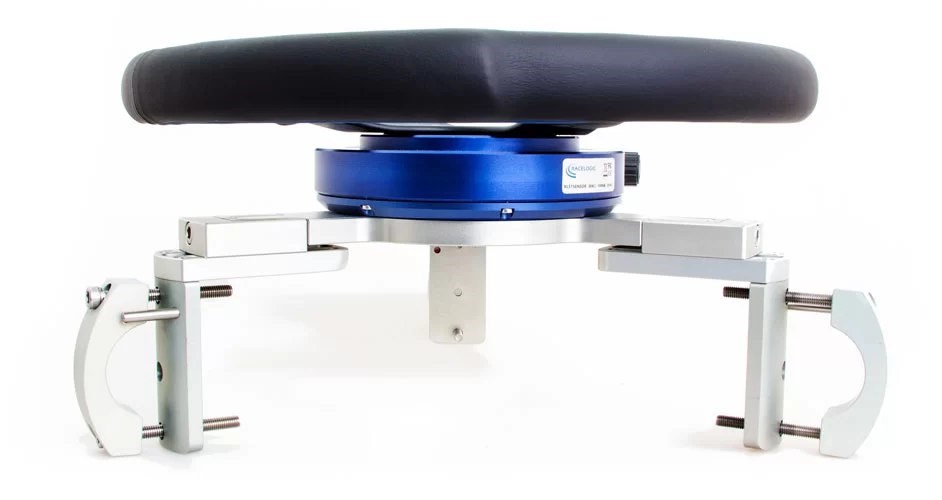

Existing steering wheel functions, such as vehicle control elements, will not be affected when using the Steering Torque Sensor. A universal steering wheel adapter is also included, making it quick and easy to mount to any vehicle, without having to remove the actual steering wheel.
Features:
CAN and analogue interface for connection to VBOX 3i or 3rd party data logger
Ideal for tests such as ECE R79, ISO 4138 and ISO 7401
3 sensor variants, 50,100 & 200 Nm torque
Steering angle resolution 0.1°
Can be calibrated to ISO 17025 standard
Quick and easy to install - supplied with a universal mount
Does not interfere with the vehicle’s steering wheel controls
Technical data:
