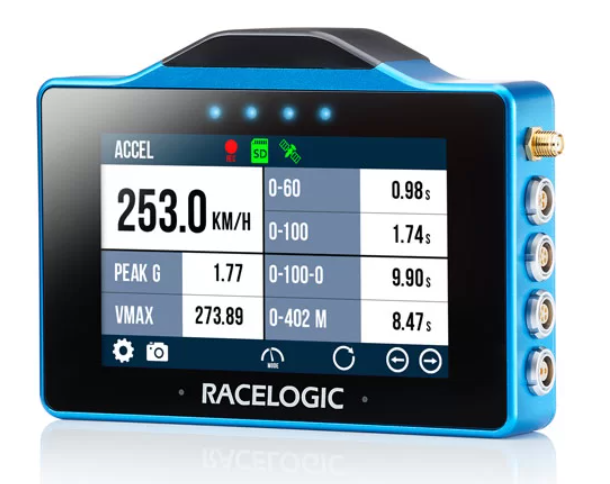

VBOX Touch is a versatile GNSS data logger featuring a large color touchscreen, CAN support, and an open Python-based application framework. It records accurate data at 10/25 Hz, offers RTK capability for centimetre-level precision, and integrates seamlessly into a wide range of automotive tests. VBOX Touch is compatible with the full VBOX sensor ecosystem and can be expanded with multiple free applications.
Applications

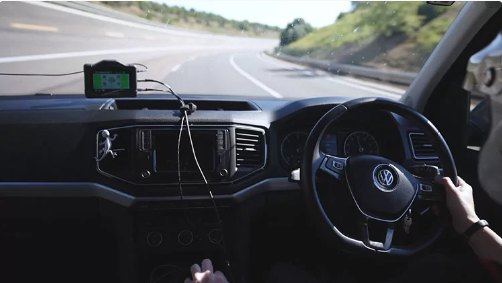

Ideal for performance and durability testing, real-time brake/tire temperature monitoring, on-road ADAS evaluations (RTK version), and precise measurement of key vehicle dynamics parameters.
Key Specifications
- Speed accuracy: 0.1 km/h
- Speed resolution: 0.01 km/h
- Distance accuracy: 0.05%
- Distance resolution: 1 cm
- Up to 64 CAN channels via 2x CAN Bus
- Maximum acceleration: 4 g
- Heading accuracy: 0.3°
- GNSS update rate: 10 or 25 Hz
Variants
VBOX Touch RTK
Equipped with GNSS RTK for centimetre-level accuracy, maximum speed 1600 km/h, brake accuracy ±5 cm, and position accuracy of 0.01 m + 1 ppm. The ideal choice for cost-efficient ADAS testing on public roads.
VBOX Touch
Standard version with 25 Hz GNSS, GPS/GLONASS/Galileo/BeiDou support, 4.3” TFT touchscreen, status LEDs, 10 cm brake accuracy (with trigger & external antenna), Python application support, and up to 64 CAN channels. Position accuracy 1.3 m (SBAS), ISO 17025 certified.
