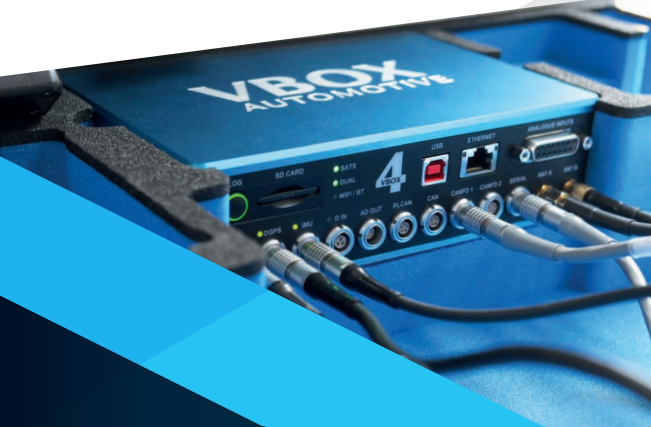

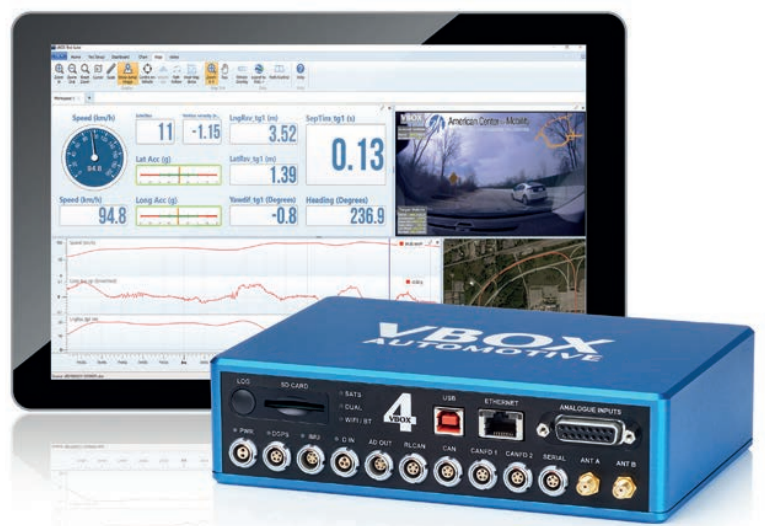

VBOX 4 is a next-generation 100 Hz GNSS data logger designed for high-precision and highly flexible automotive testing. It supports RTK for centimetre-level accuracy and maintains reliable performance in challenging GNSS environments when paired with the IMU05. The system integrates seamlessly with driving robots and a wide range of test equipment. Fully compatible with the VBOX ecosystem of sensors and modules, VBOX 4 delivers a complete and robust measurement solution for vehicle testing.
Applications
Ideal for ADAS testing, vehicle dynamics evaluation, brake testing, sensor validation, multi-target scenarios, autonomous system verification, and high-accuracy vehicle performance analysis.
Key Specifications
- Velocity accuracy: 0.1 km/h
- Velocity resolution: 0.01 km/h
- RTK positional accuracy: 10 mm + 0.8 ppm × baseline
- Distance accuracy: ±0.05%
- Distance resolution: 1 cm
- CAN data rate: up to 5 Mbit/s
Variants
VBOX 4
Standard model featuring 100 Hz GNSS + RTK, full CAN/CAN FD logging, and IMU05 compatibility. Suitable for general measurement, dynamics testing, and brake performance assessment.
VBOX 4 ADAS
Enhanced for ADAS and NCAP workflows: supports up to 5 moving/static targets, 3 road lines, and 99 signposts. Includes dedicated ADAS configuration tools within VBOX Test Suite for complex multi-target and compliance-driven test scenarios.
VBOX 4 Dynamic
Optimised for vehicle dynamics applications: ±1.8 cm brake stop accuracy, slip measurement at up to 5 vehicle locations, 4 analogue inputs, and multi-interface connectivity. Ideal for ESC, lane-change, tyre testing, and stability assessments.
