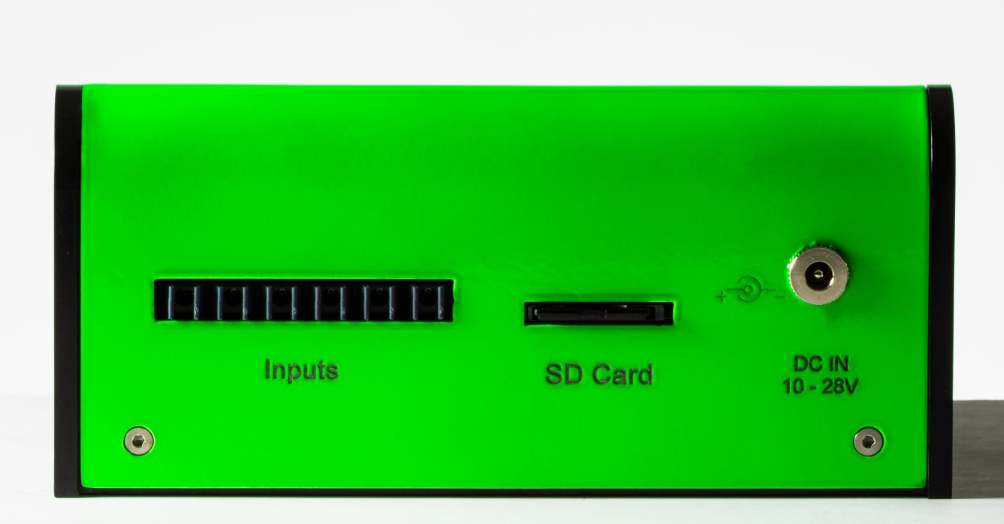

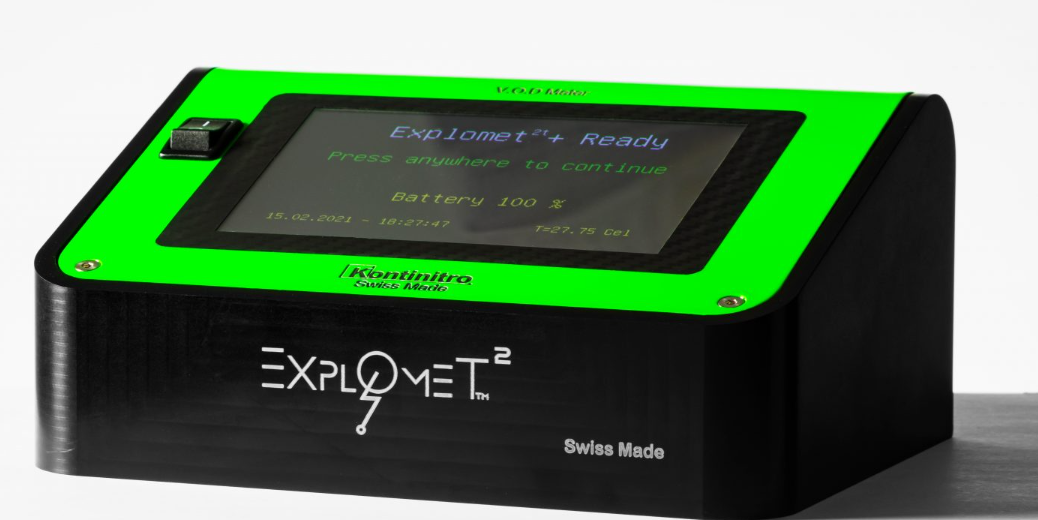

The Explomet²ᵀ⁺ is a next-generation VOD measurement system that detects the light emitted during detonation through optical fibers and converts it into highly accurate timing and velocity data. It enables detailed analysis of explosive performance under all field conditions. The instrument automatically identifies the illumination order, ensuring correct VOD reconstruction. Designed for harsh environments, the Explomet²ᵀ⁺ logs all data to an SD card and operates reliably.
Applications
- VOD measurement in quarries, mines, and field blast tests
- Explosive quality verification and optimization of blasting operations
- Analysis of detonation propagation and explosive stability
- R&D applications: material behaviour studies and explosive performance comparison
Key Specifications
- Inputs: 6 optical fibers / 5 counters
- Timing precision: ±0.01 µs
- Sampling rate: 100 Hz
- 5.0" resistive touchscreen
- Supply voltage: 9–24 V
- Operating temperature: –40°C to 80°C
- Output signals: CAN, TTL (A/B/Z), 18000 pulses/360°
- Max rotation speed: 2000 rpm
