Bộ hiển thị lực, Type DGT20PRONET

Standard Features

• Easy to use 5-key waterproof keyboard.
• Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.

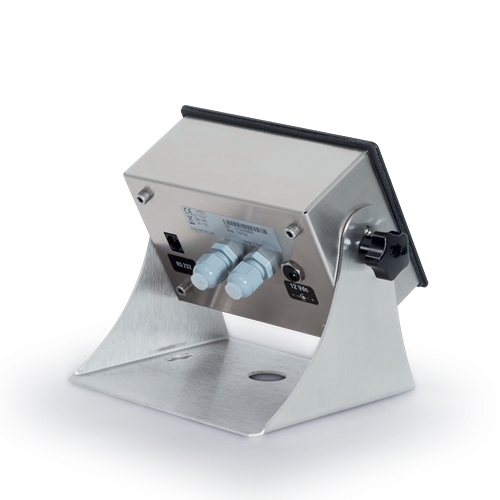

• Stainless steel protective case.
• Frontal panel in alluminium, with protection gasket.
• Dimensions 170x115x68mm, fitted with support bracket (168x150mm) for table or wall mounting.
• Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
• Up to 10.000e or multirange 2 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
• Up to 800.000 displayable divisions with internal resolution up to 3.000.000 points.
• Up to 8 signal linearization points with DINITOOLS (3 from keypad).
• A/D 24-bit sigma-delta conversion, up to 400 conv./sec. autoselect.
• Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
• Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.
• From 12 Vdc to 24 Vdc power supply; 12Vdc power adapter included. EU, UK, US, AU plugs included as standard.
